Descriptions

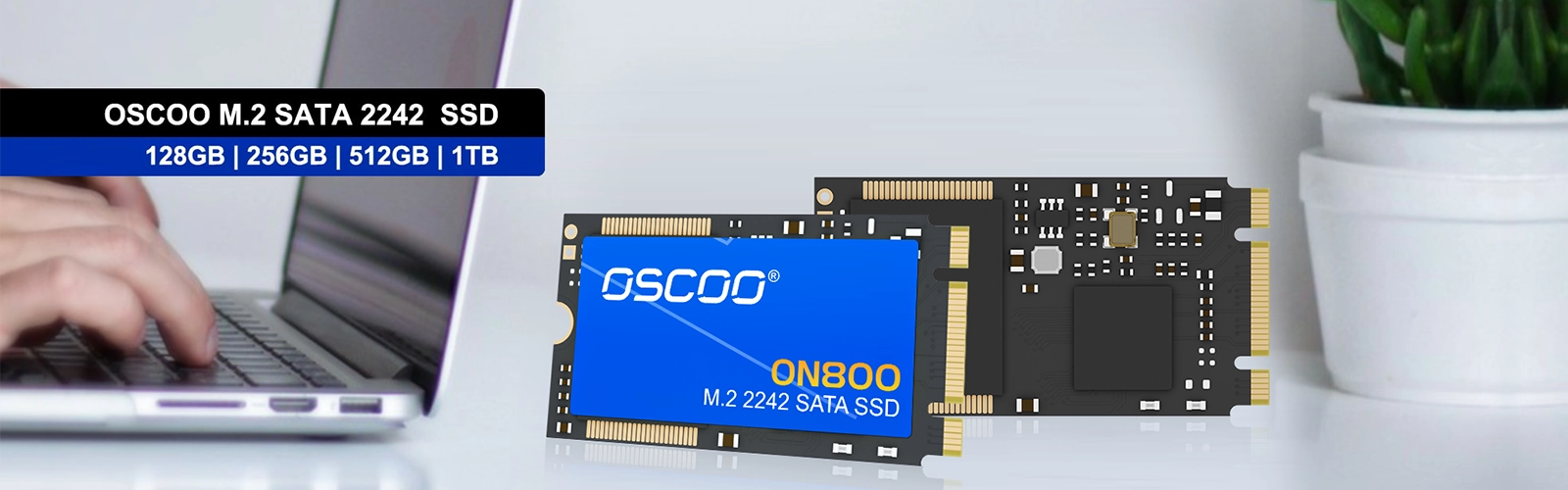

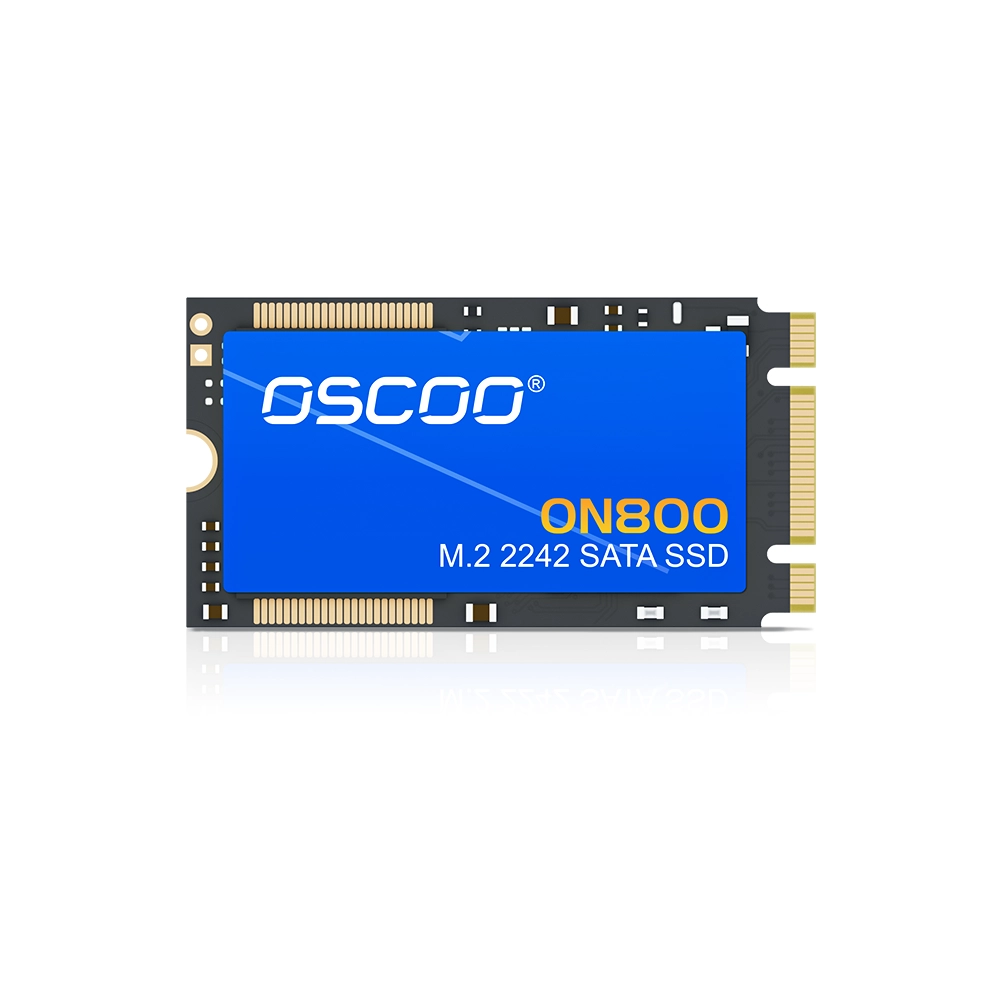

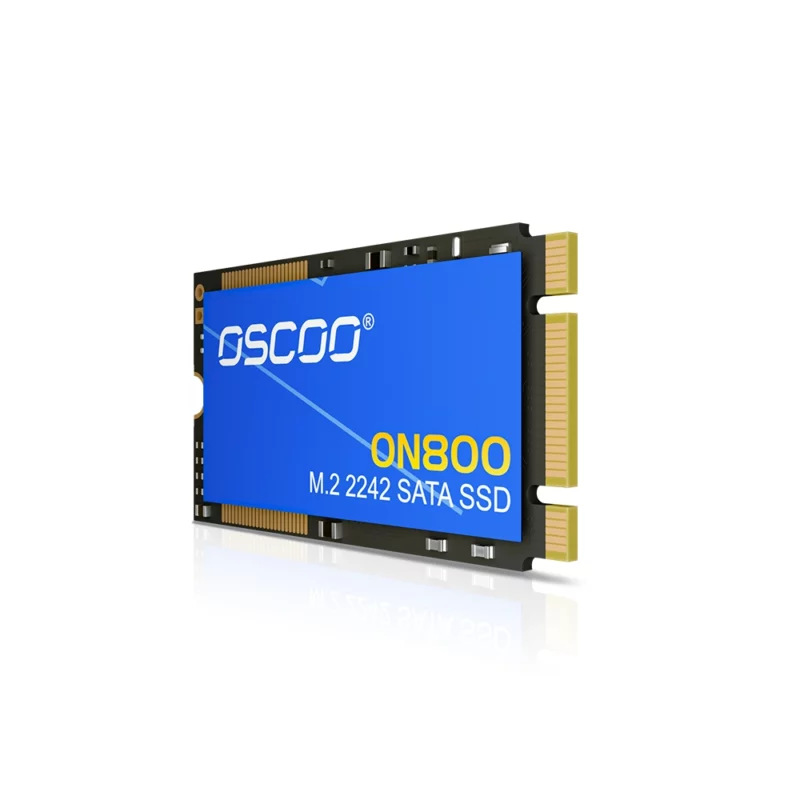

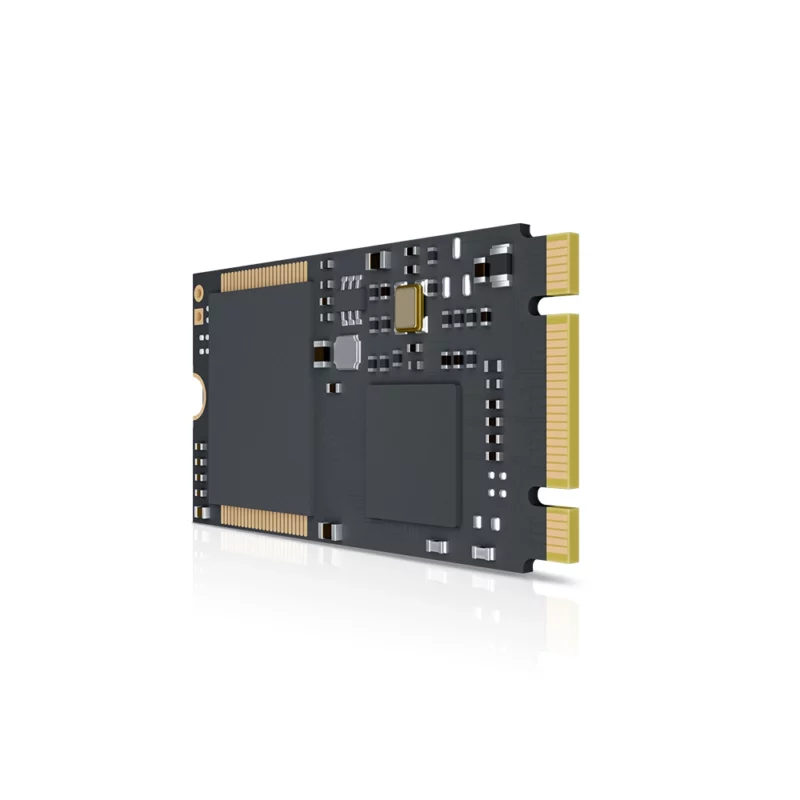

Meet the OSCOO M.2 2242 SATA 6GB/s SSD, your compact yet powerful storage solution. Engineered for efficiency and performance, this SSD packs a punch in a small form factor, making it ideal for a wide range of applications.
Compact and Space-Efficient: The M.2 2242 form factor is known for its compact size, making it a perfect fit for systems with limited space.
Swift and Reliable Performance: Despite its size, the M.2 2242 SATA SSD delivers swift and reliable performance, thanks to its SATA 6GB/s interface. It ensures speedy data access, efficient file transfers, and responsive application loading.
Robust 3D TLC NAND Flash: This SSD is equipped with 3D TLC NAND Flash technology, known for its durability and performance-enhancing capabilities. It’s designed to handle demanding workloads, ensuring long-lasting and consistent performance.
Reliable and Efficient: OSCOO is dedicated to providing reliable and efficient storage solutions. The M.2 2242 SATA SSD is built to last, ensuring your data remains safe and accessible when you need it.
M.2 SATA 2242 SSD high-performance
Upgrade with full capacities up to 2TB
Compact M.2 2242 form factor
Low profile graphene aluminum heat spreader
Specifications
| Model Name | ON800 2242 |
| Form Factor | M.2 2242 |
| Interface | SATA3 |
| Capacities | 128GB|256GB|512GB|1TB|2TB |
| Dimensions | 42*22*3.5mm |
| NAND | 3D TLC |

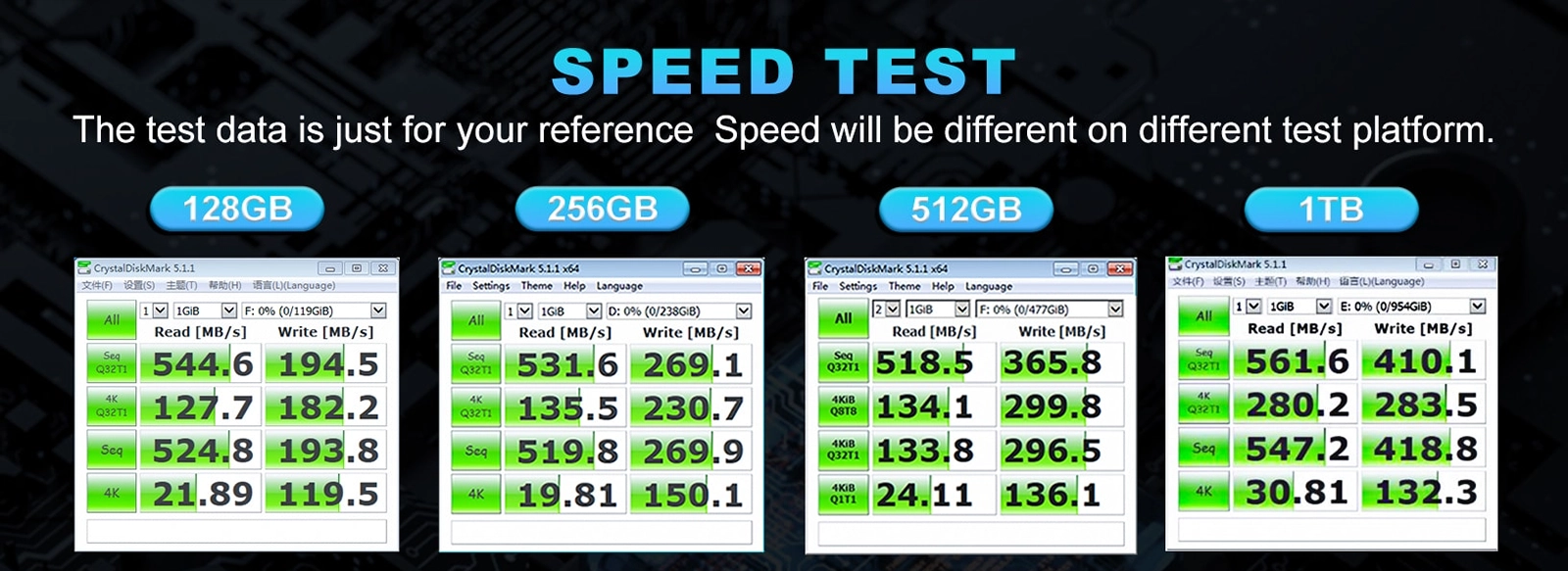

| Speed | Up to 550MB/s Read, 520MB/s Write |
| Operating Temperature | 0˚C ~ 70˚C |
| Storage Temperature | -40˚C ~ 85˚C |
| Warranty | 3 Years |
| Total Bytes Written (TBW) | |
| 128GB–76 TBW | |
| 256GB–152 TBW | |
| 512GB–304 TBW | |
| 1TB–608 TBW | |
| 2TB- 1216 TBW |
